A few months back I wrote a post on how to implement simple PowerShell scripts to export, unpack and import solutions for Dynamics 365 and Power App projects. That post can be found here and is still relevant;

Simple ALM for Dynamics 365/CDS Projects

Summary

  • All PowerApps/Dynamics 365/CDS projects, big or small should be using some form of source control for customization.
  • You don’t necessarily need to build complicated build pipelines or continuous integrations to implement an ALM process.
  • This edition walks through using Power Apps Build Tools to automate some tedious chores when working with Dynamics 365/Power Platform solutions.

PowerShell vs Azure Dev Ops Pipelines

After my post on using PowerShell for ALM tasks, I was approached by a couple folks in the community asking me why wouldn’t I use Build Pipelines in Azure Dev Ops, either the Microsoft Power Apps Build Tools or Wael Hamze’s Dynamics 365 Build Tools.

To be honest, I assembled the PowerShell scripts a few years back, prior to some of these tools being available. They work well for many of my smaller projects, the are extremely flexible and easily launched from shortcuts on my desktop. Like all things Power Platform, there are a number of ways to do things and sometimes its a matter of choosing what works best for you.

UPDATE MAY 2020: Running PowerShell scripts on your local workstation will get right to work right away. Azure DevOps Build tasks? Sometimes not. I have been noticing that an Agent sometimes (not always) may wait 5 minutes or more before resources are ready to start running. Not ideal if you want a solution deployed quickly.

Many of the blog posts, documentation and presentations on the various pipeline tools reflected large development teams. Setting up large complex pipelines with automated builds, testing and deployment is many times overkill for small projects where there may be only one person configuring the solution.

Are Build Pipelines just for large teams?

That being said, I feel that no project is too small for some good habits. All configuration changes should always be done at very least on a sandbox environment and all configuration (entity, form, field, view, flows, apps, etc) changes as well as code should always be saved to some form of source control.

I decided to explore the Power Apps Build Tools to see if I could put together a fairly simple package that a “one person” project could use based on the following parameters;

  • There is at least one Sandbox and Production Environment
  • All configuration work is done on the sandbox
  • All configuration is saved to source control
  • The solutions are deployed to production, ideally as managed (but could be unmanaged if you haven’t seen the light yet.)
  • The process is easily to setup and maintain

As you can see from the following post, I was successful in setting up some simple pipelines, which already have saved me a lot of time.

Credit where Credit is Due

I stole many of these steps from a set of hands on labs that can be found on Github by clicking here. These are an excellent resource and great way to get introduced to the Power Apps build tools.

The steps I have prepare here more recent screen shots and I took a different approach in which I simply exported a managed solution direct from the sandbox and deployed to the production, as opposed to assembling the managed solution in a temporary build environment.

I hope I add value by putting a simpler spin on it and provide some additional context.

Some Terminology

Pipeline

Think of a pipeline as a type of script or steps that you will define to do a series of tasks.

Repository

A repository is like a file folder that contains your source files (configuration, code, etc). However, it will keep track of the specific changes, who made them, and when.

Setup Azure DevOps

If you have not done so already, you will need an Azure DevOps environment. In most cases, you should be able to use the free account.

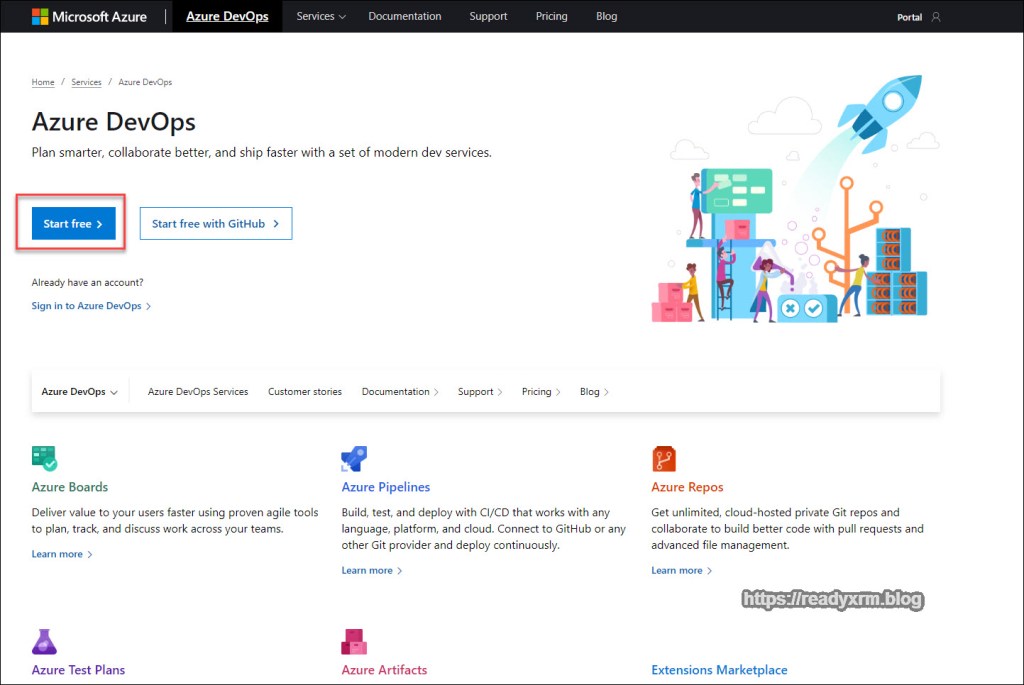

Navigate to https://azure.microsoft.com/en-us/services/devops/ and click on the Start free option.

Azure DevOps

You will need to sign in with a Microsoft account if you have not already done so. Choose your country/region.

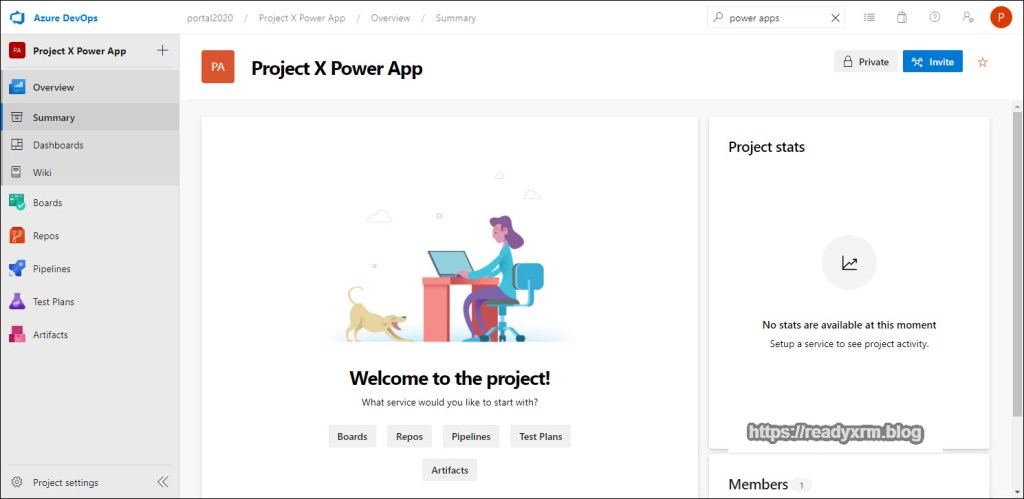

Start off by creating a new project in Azure DevOps. This will contain your pipeline and your source repository.

Create Project

Your project will have a series of options on the left hand of the screen. We will be looking only at Repos (repositories) and Pipelines. However, Azure DevOps has a number of other very useful features for managing projects.

Azure DevOps

Install PowerApps BuildTools

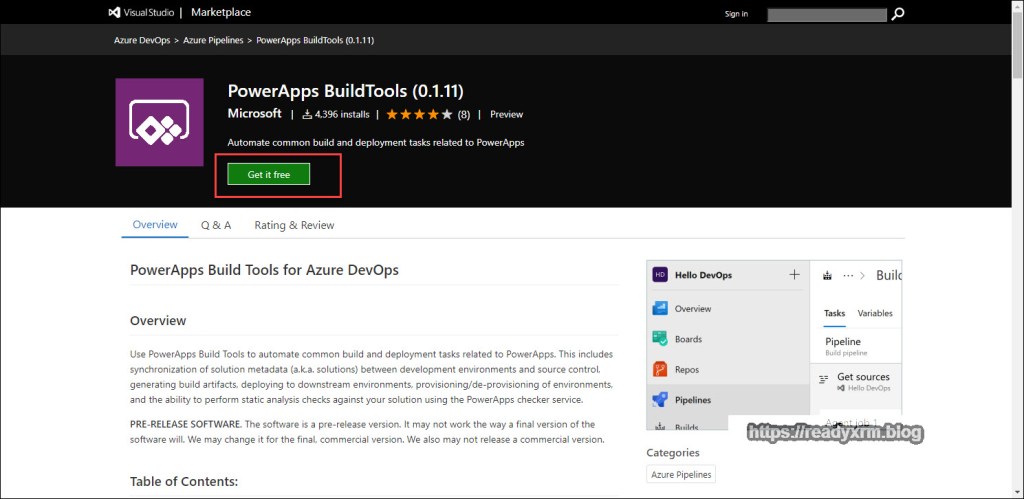

Azure DevOps is extensible, and the PowerApps Build Tools need to be installed. While logged into Azure DevOps, navigate to https://marketplace.visualstudio.com/items?itemName=microsoft-IsvExpTools.PowerApps-BuildTools Note these tools are still considered to be in preview, so all gotchas apply here. Click on “Get it free” to install the Power Apps build tools in your Azure DevOps environment.

Build Tools

Choose your specific Azure DevOps organization (in case you have many)

Azure DevOps organization

The install process should only take a few moments.

You are all set! (almost)

Setup Repository

We need to setup a repository (or what the cool kids call “Repos”) where we will store our source solution, which is all our configuration files like entities, forms, views, flows, apps, etc. Having a “dev” Power Platform environment (even that gets backed up) should NOT be considered your source control. Your files should be pushed to source regularly.

Select Repos

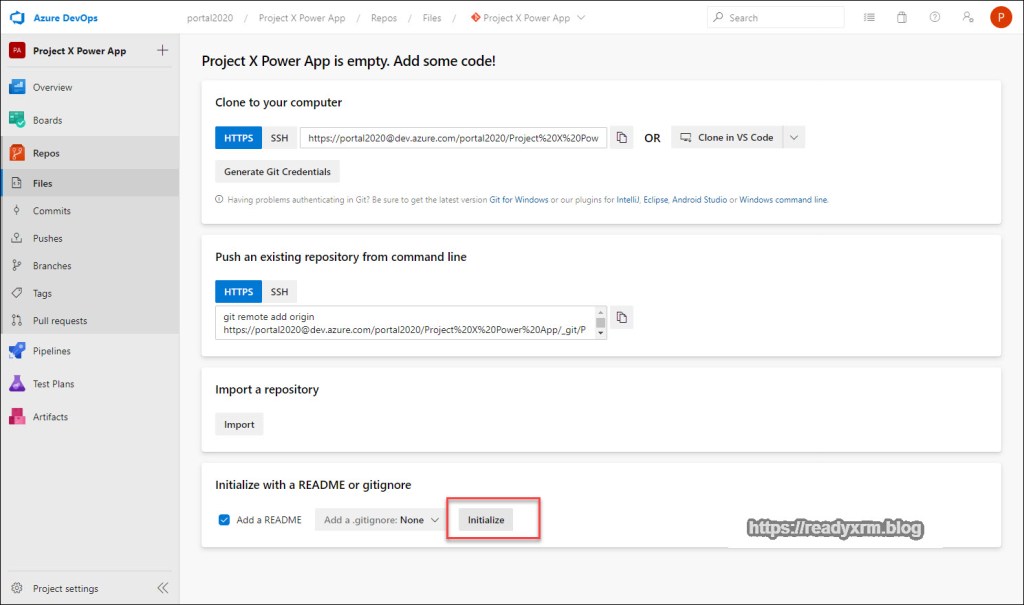

Initialize with a README file and get the repository created.

Initialize

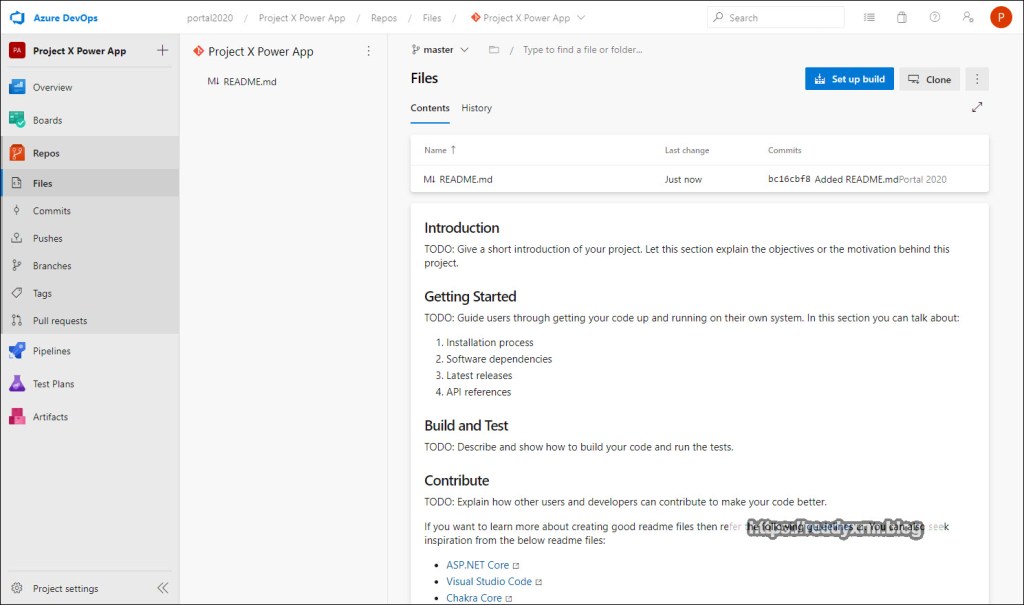

You will now have an empty repository with a README file that is formatted with markdown. Eventually, we will be pushing our source configuration files here. This should become your “source of truth” when it comes to configuration.

Empty Repository

Allow Build Service to Access Repository

There is some security to setup to allow our pipeline to be able to upload the configuration to source control. We need to allow the Project Collection Build Service to have contribute access to the repository.

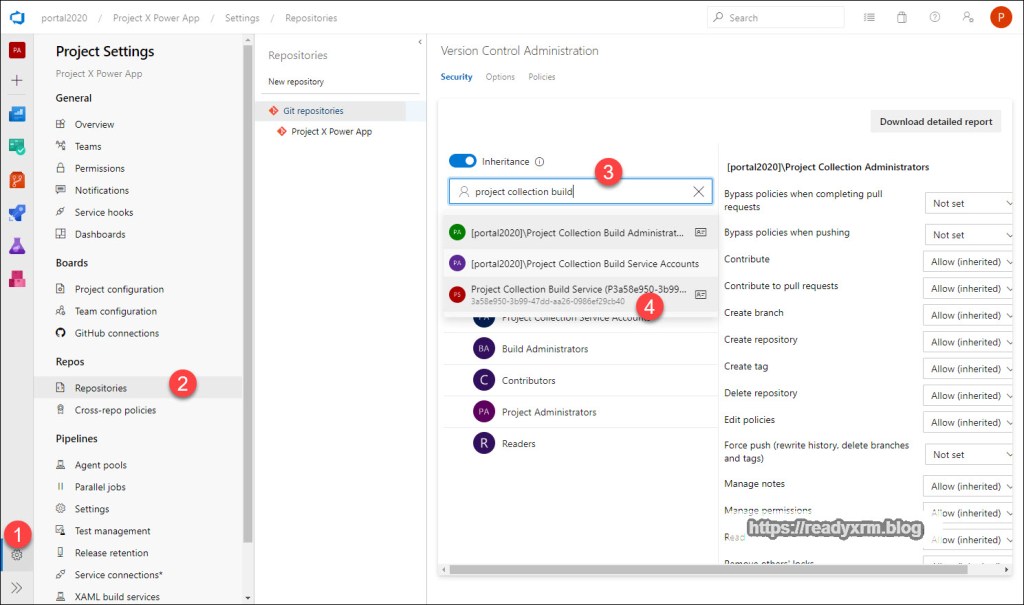

  1. Click the Gear Icon in the bottom left corner to get access to Project Settings
  2. Choose Repositories
  3. Locate Project Collection Build Service
  4. Add the Project Collection Build Service

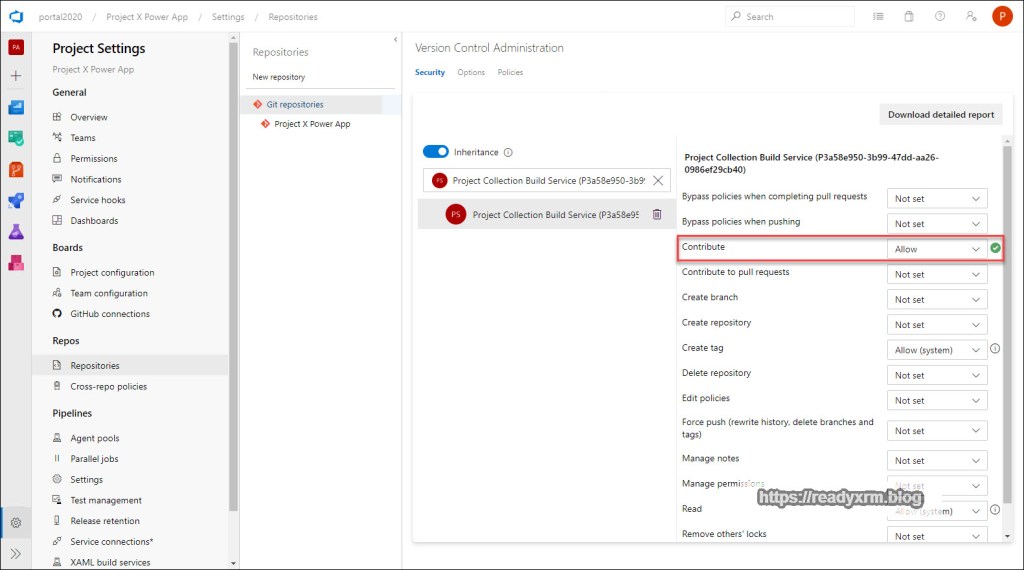

Once you have added the Project Collection Build Service, choose “Allow” on the contribute permission.

Create A Pipeline to save a Power Platform solution to Source Control

Are you backing up your solution files somewhere? You should be! However it is tedious to download the unmanaged zip file and save it somewhere. Also, what happens if something breaks? Do you have any way of tracking changes made to your solution? This is where source control helps, and ideally, it should be automated. This is pipelines come into play.

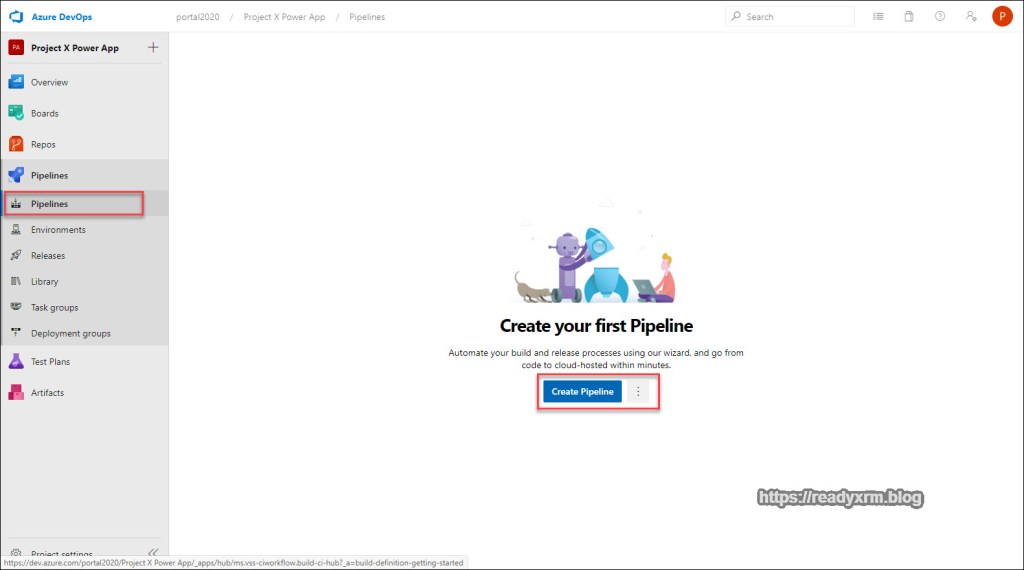

In Azure DevOps, click on the Pipelines link on the left side and create your first Pipeline.

Create Pipeline

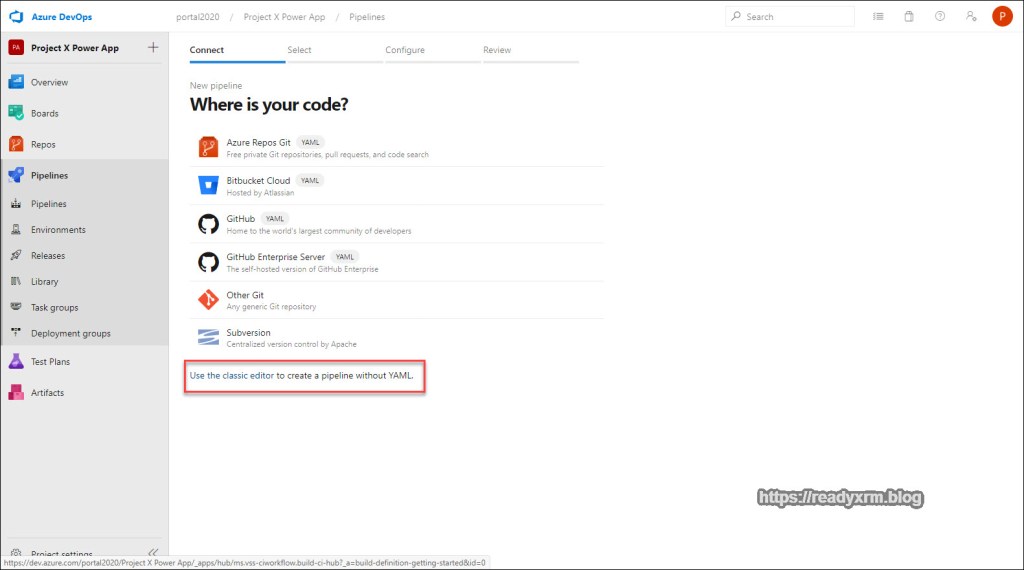

For the Power Apps Build tasks, we will use the classic editor.

Choose Classic Editor

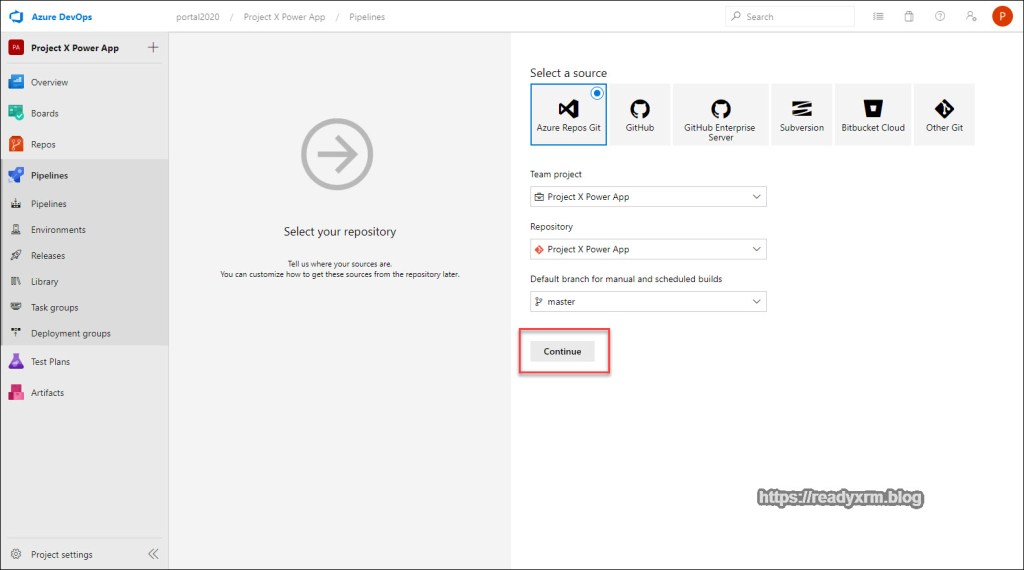

We will use Azure Repos Git (which is default) for our repository. Click continue. Other source control systems are available (I don’t see sourcesafe?) 🙂

Default Azure Repos Git

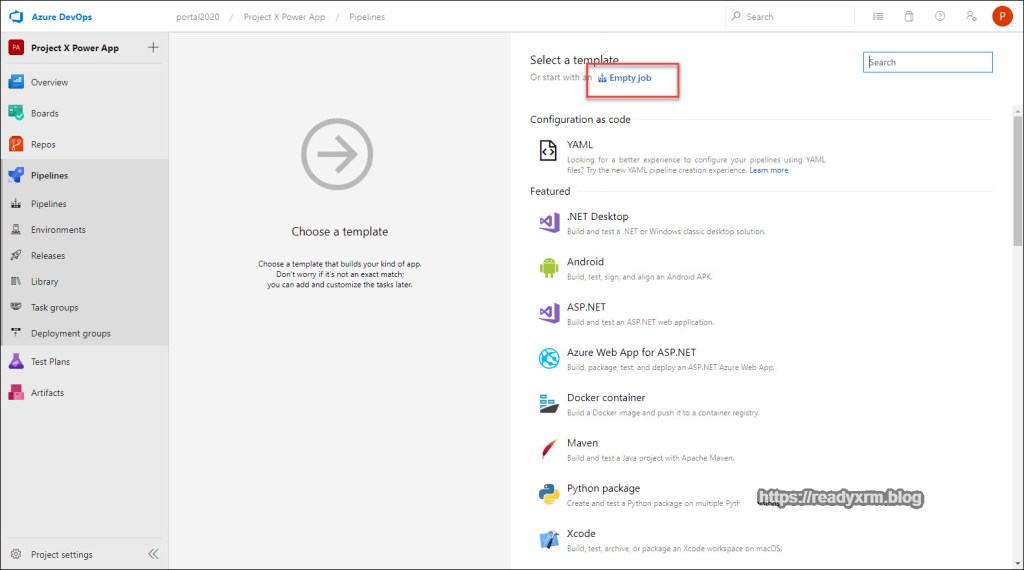

We will build our pipeline using an Empty job.

Empty Job

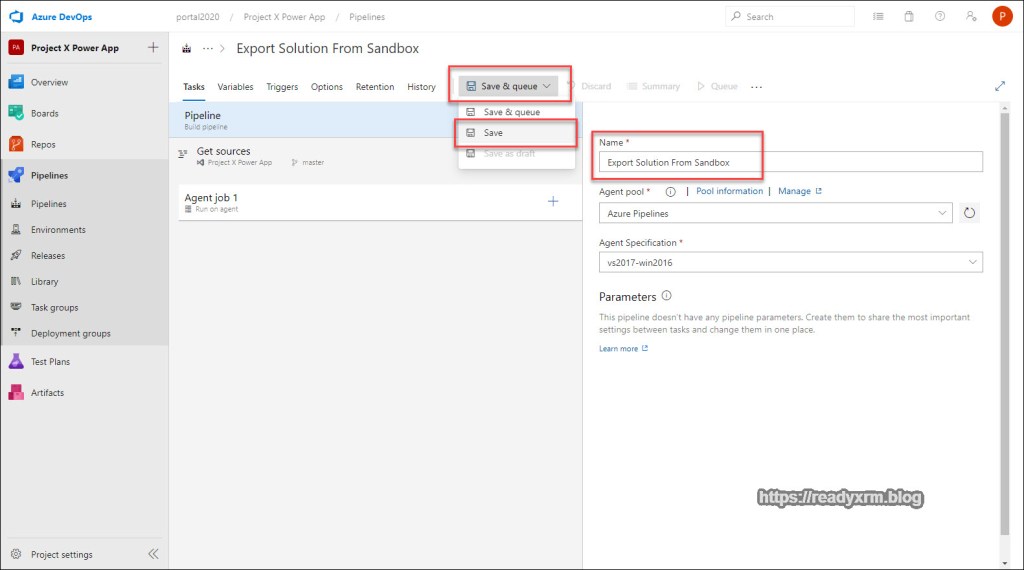

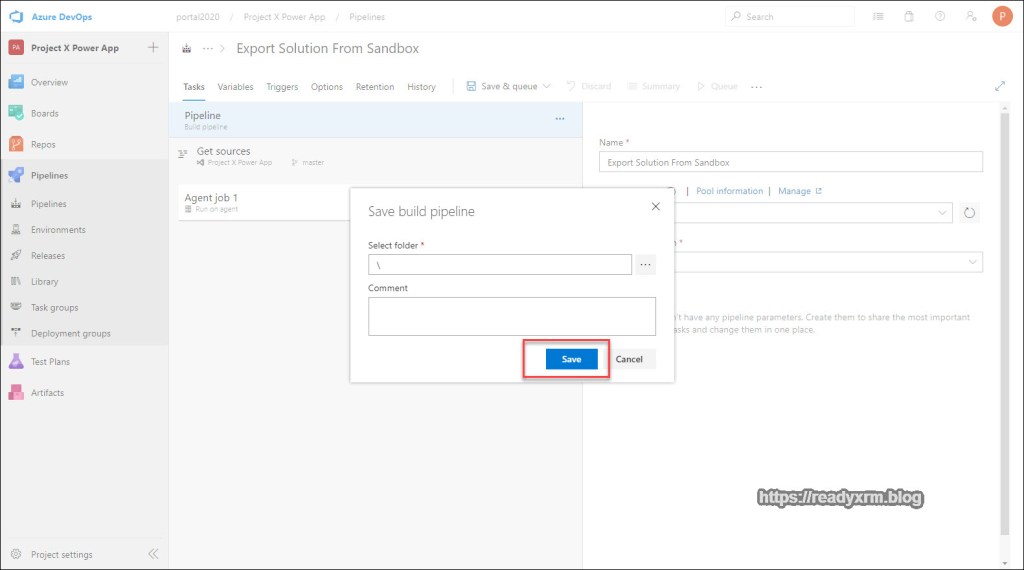

Give your pipeline an easily identifiable and recognizable name. Save your pipeline by choosing the “Save & queue” and then “Save”

Save

Note that each time you save, you can log an comment to keep track of what you did. In most cases, you can leave this blank.

Save Dialog

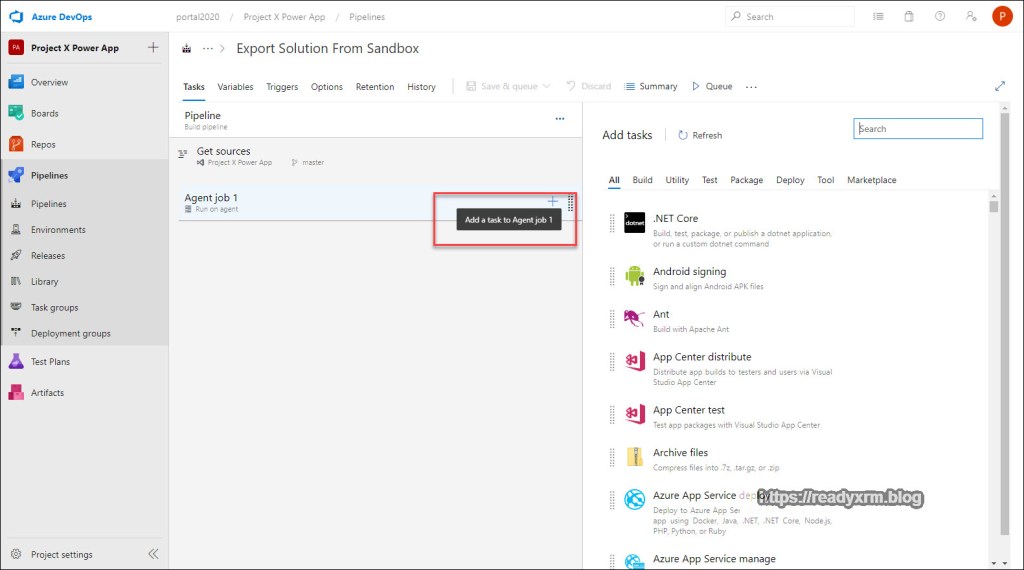

Now that our pipeline is created, lets start by adding some tasks. On the “Agent job 1” section, click the “+” button to add a new task.

Add task

On the left of the screen, search for “powerapps tools” and add the PowerApps Tool Installer.

What will happen is the build pipeline will spin up a temporary virtual machine on Azure to do our work. Since the machine is temporary, we will need to install the PowerApps Tools each time.

Add PowerApps Tools Installer

PowerApps Export Solution task

The next step is to add the PowerApps Export Solution task. This task (you guessed it!) exports solutions from the Power Platform. This step will export the solution to a folder on the temporary virtual machine.

Export Solution Task

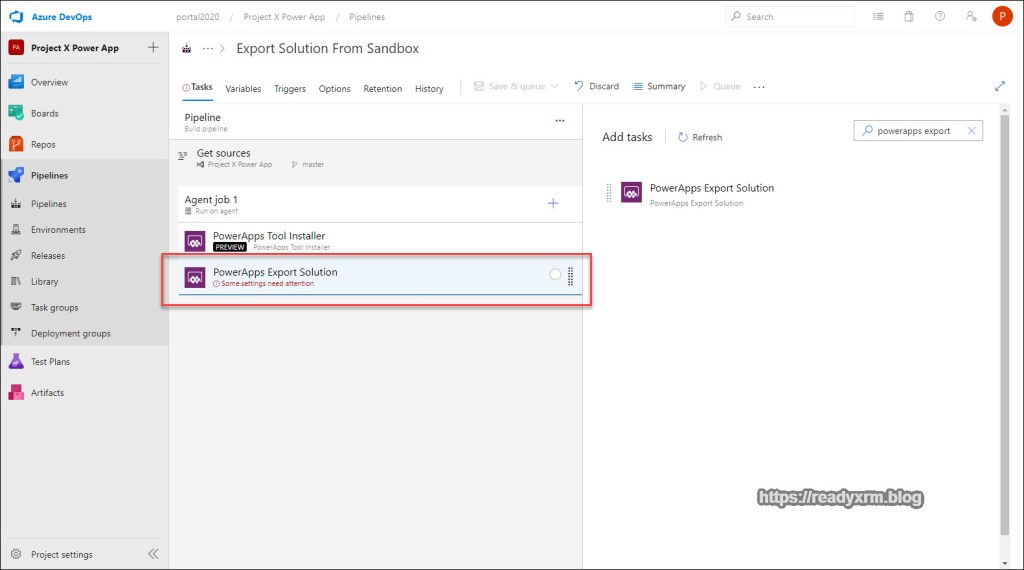

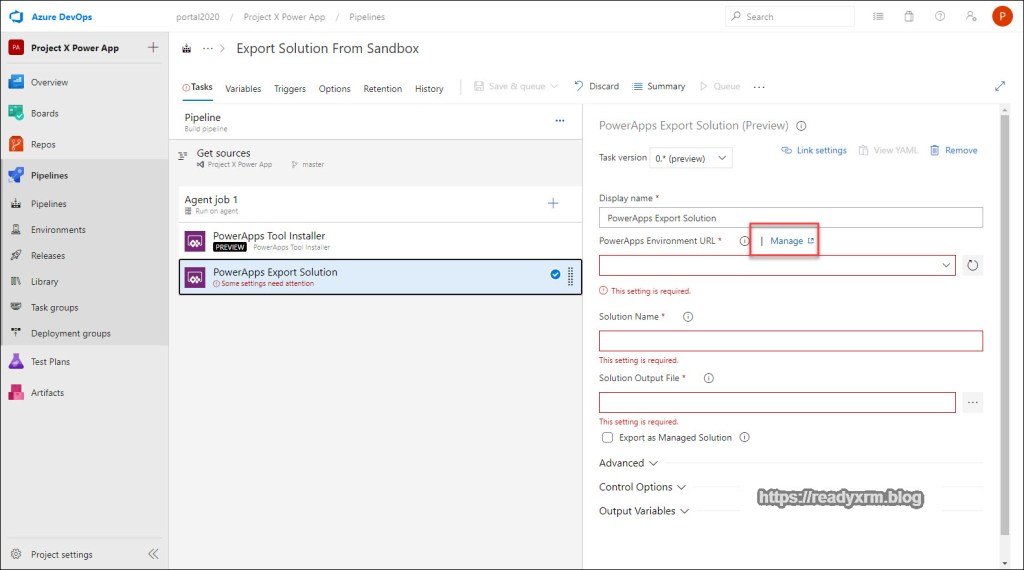

Once you have added this task you will notice that you need to configure some additional settings. The tool needs to know what environment to export the solution from and also what solution!

Some settings need attention!

The right hand properties window will show what settings need to be defined. Beside “PowerApps Environment URL” click on Manage.

Manage Environment URL

Service Connections

A service connection is a link to an application external to Azure DevOps. We will create a service connection to our Power Apps Environment that we can use for multiple tasks in our pipeline.

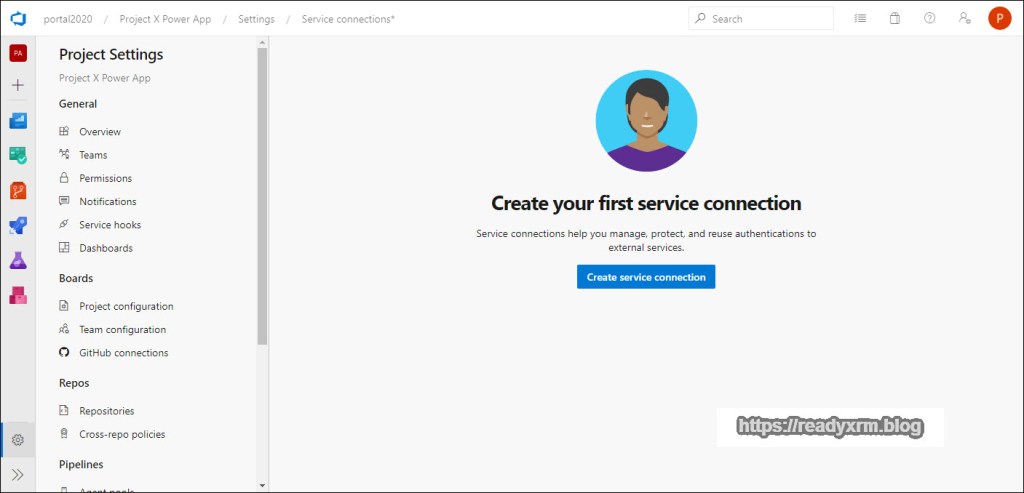

Click on “Create Service Connection”

Create Service Connection

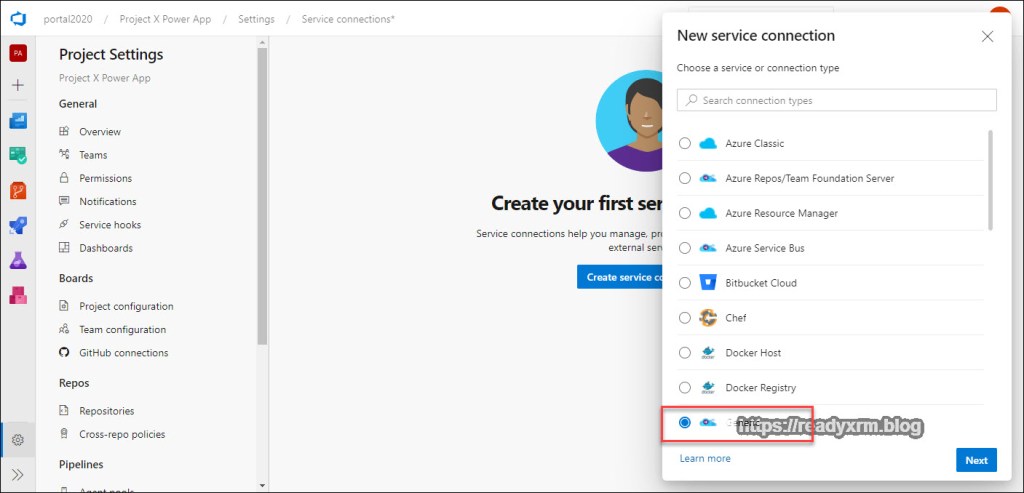

In the list of Service Connection types, the Power Platform is conspicuously absent. We will the choose “generic” service connection type.

Generic

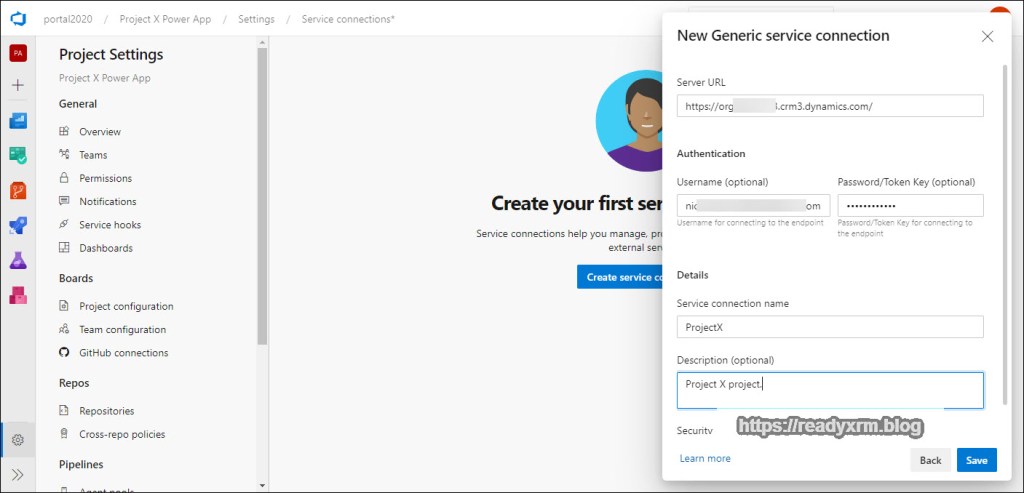

In the service connection settings, will get the URL from our Power Platform environment (You can find this in the Power Platform Admin Center) You will also need to specify a username and password. Also give the service connection a meaningful name.

NOTE: Multi-Factor is not yet available. Yes, this could be an issue. Yes, Microsoft is aware of it.

Connection to Power Platform environment

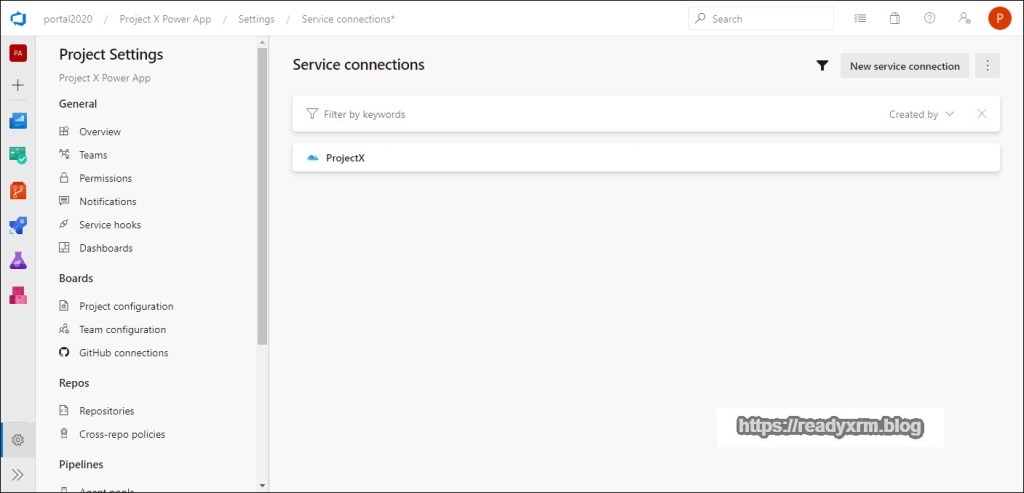

You will see your service connection in the list. You could add multiple other connections to various other environments.

Service Connection List

Continuing PowerApps Export Solution Setup

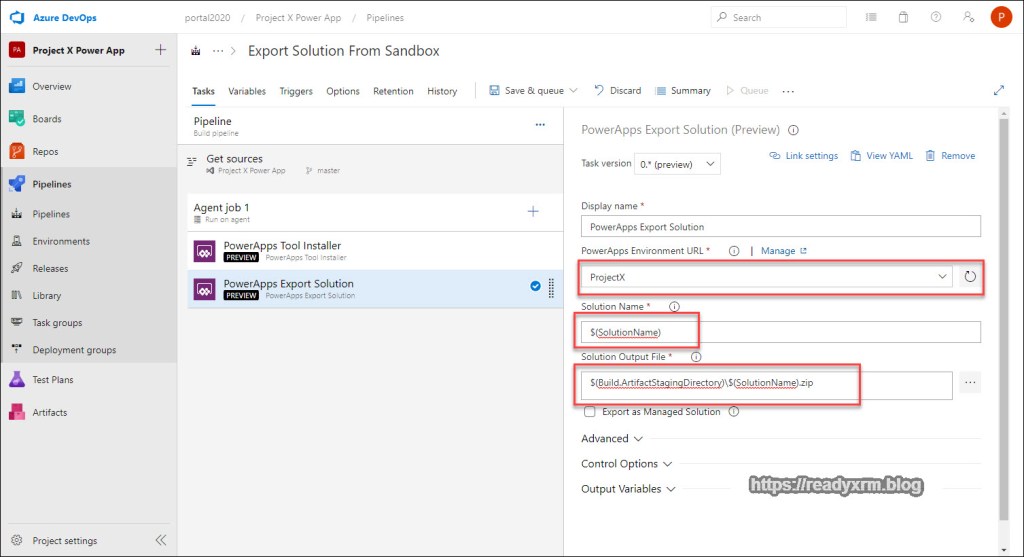

Back on the PowerApps Export Solution step configuration, choose the service connection you just added as well the following;

Solution name

$(SolutionName)

Solution Output File

$(Build.ArtifactStagingDirectory)\$(SolutionName).zip

The solution name is actually a variable that we will setup in a few steps below. We can then reuse that variable in multiple places.

PowerApps Export Solution settings

PowerApps Unpack Solution Step

Now that we have exported the solution from our source sandbox environment, before adding to source control, we will unpack it. The solution file is essentially a .zip file with the configuration files in mostly XML format. Pushing it to source control “unpack” means we can easily see the changes to the configuration and when they were done. In more advanced cases, changes from other developers can be merged into this code and re-packed, but lets keep things simple for now.

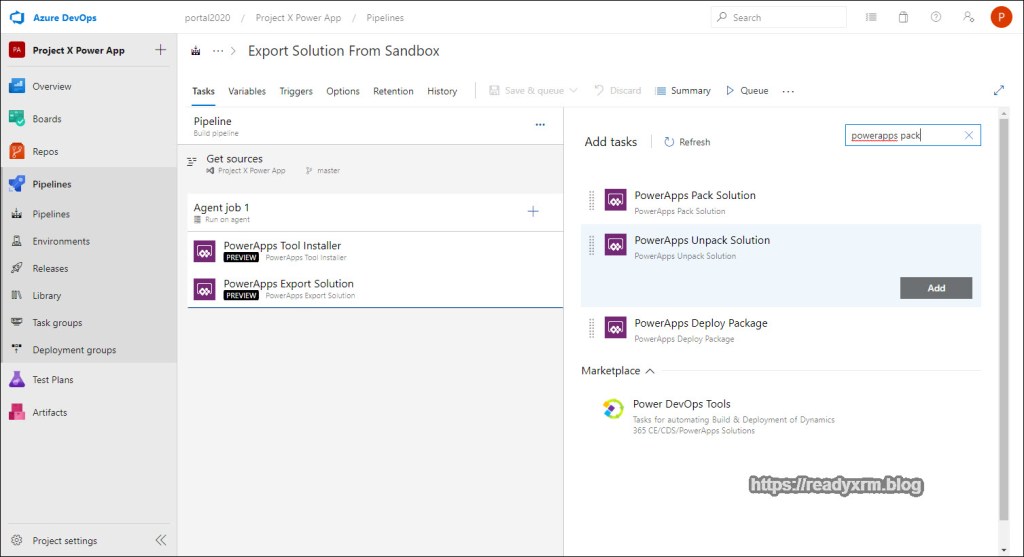

Add a new task and locate PowerApps Unpack Solution.

Add unpack solution

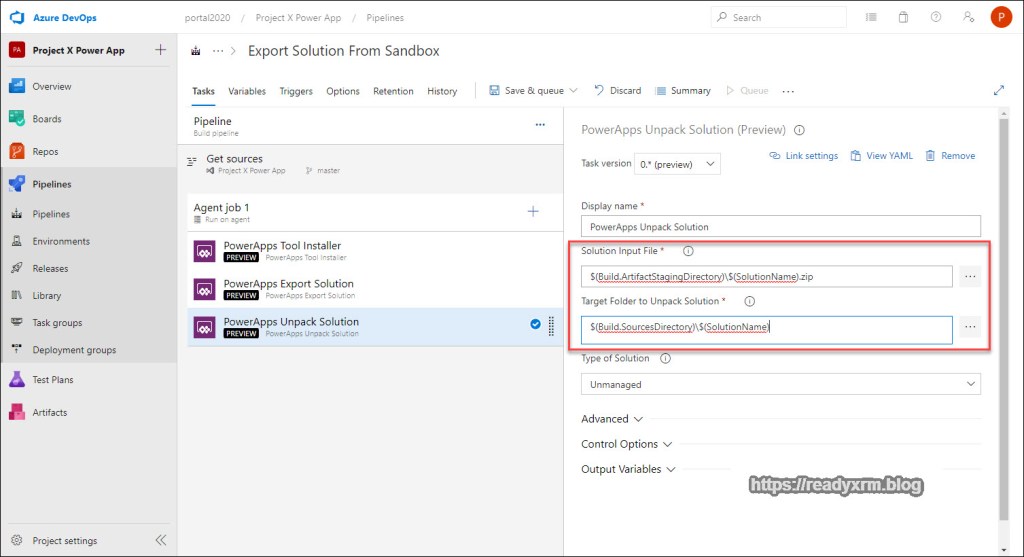

The PowerApps Unpack Solution step also requires some additional settings.

Solution Input File

$(Build.ArtifactStagingDirectory)\$(SolutionName).zip

Target Folder to Unpack Solution

$(Build.SourcesDirectory)\$(SolutionName)

Type of Solution

Unmanaged

We will be unpacking the solution that we exported in the previous step.

Unpack Solution

Pushing Unpacked Solution to Source Control Repository

The final task in our pipeline is to push the unpack solution files to source control. Git is a command line tool, so we need to add the Command Line Script task to our pipeline.

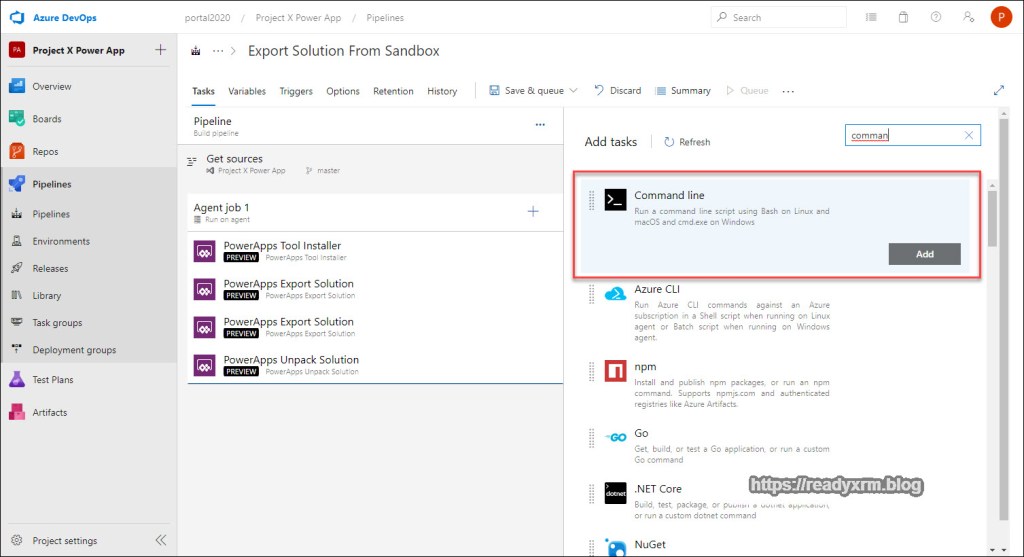

Add a new task, search for Command line and add it to the pipeline.

Add Command Line

We will need to add the script that will run the Git commands (add, commit, push) to push the unpacked files to source control. You can cut and paste it from here, you will need to specify your Azure DevOps login (replace userXXX@something.onmicrosoft.com in the script.)

echo commit all changes
git config user.email "userXXX@something.onmicrosoft.com"
git config user.name "Automatic Build"
git checkout master
git add --all
git commit -m "solution init"
echo push code to new repo
git -c http.extraheader="AUTHORIZATION: bearer $(System.AccessToken)" push origin master
Add Git Commands

Set Variables

Before we attempt to run our script, we need to define our $solution variable that used in our Export and Unpack solution steps earlier.

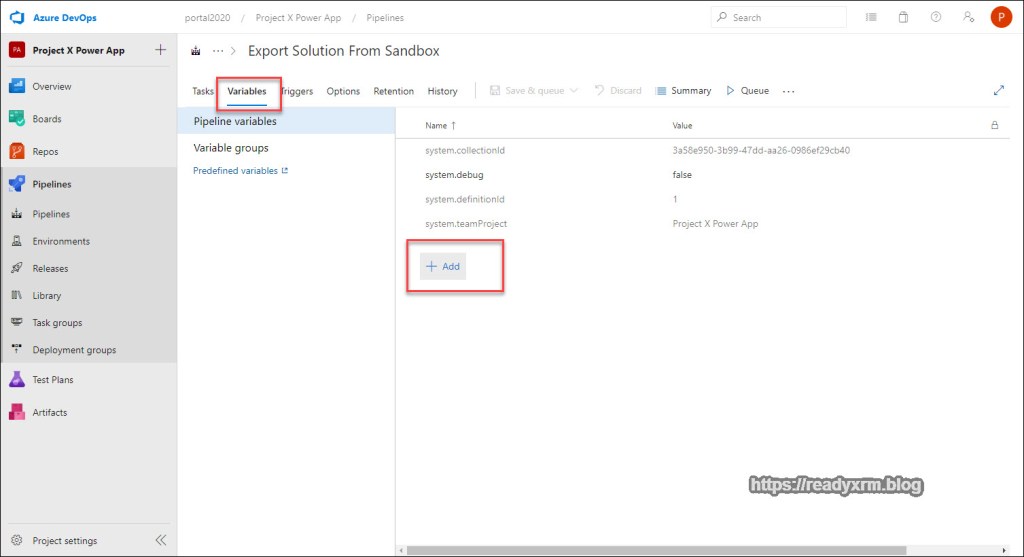

Choose “Variables” tab in the pipeline editor, and then “+Add”

Key in your solution name. You are adding all your Power Apps configurations using solutions, right?

Add solution name

Export Solution Pipeline

The pipeline should look something similar to the following screenshot:

First Attempt to run Pipeline

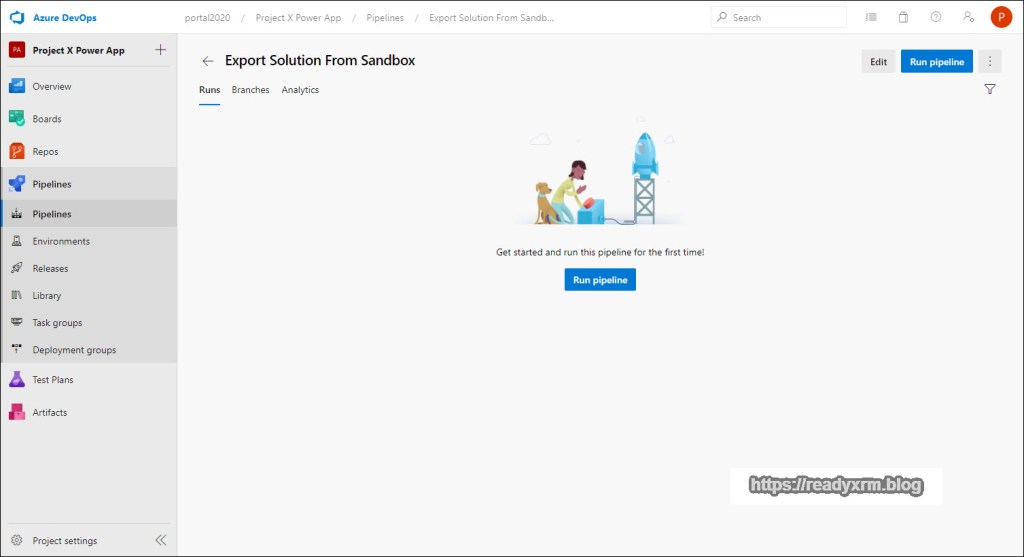

For the next step, we need to do a “2 steps forward, one step back” maneuver. Choose the option to run your Pipeline.

Run Pipeline.

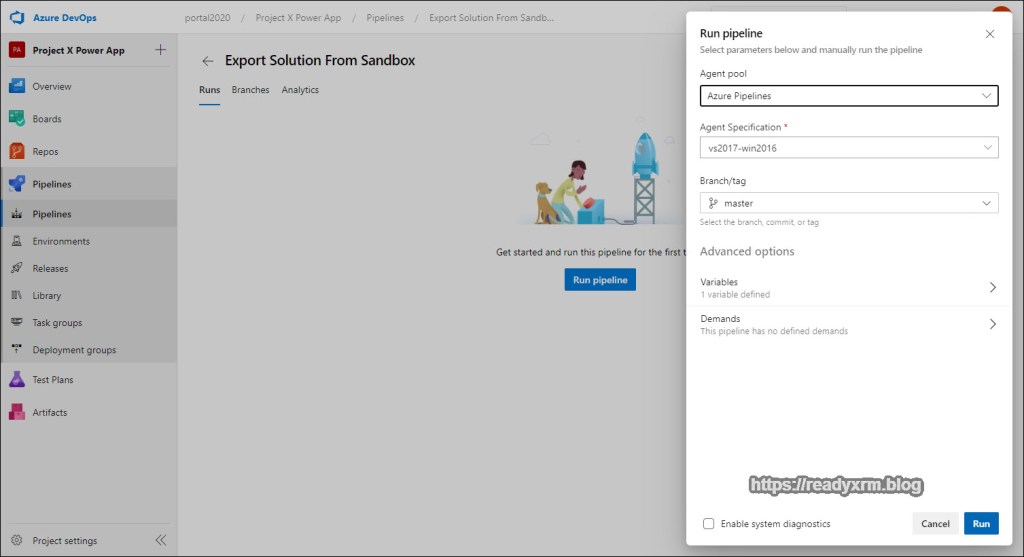

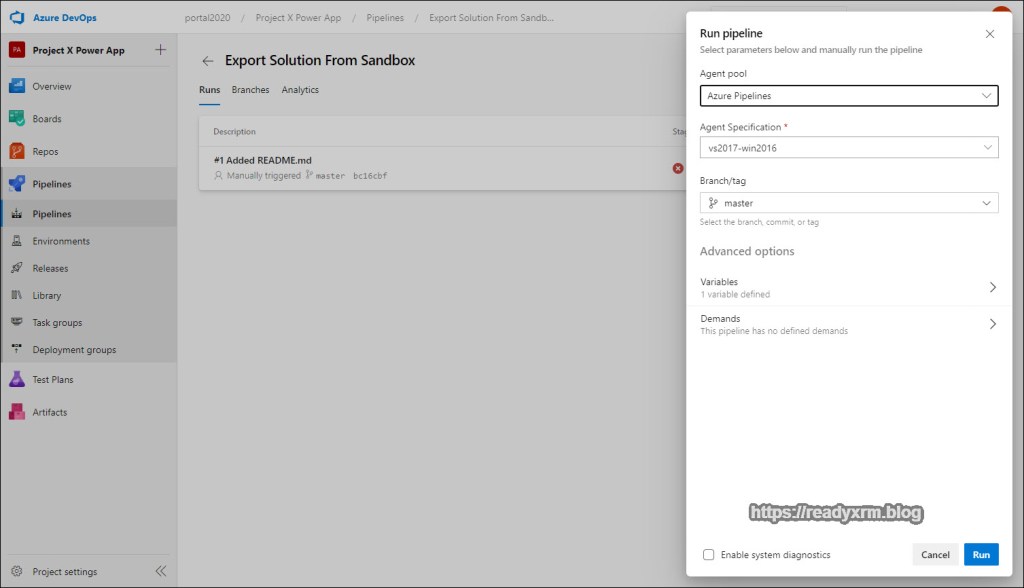

Leave the defaults and run the pipeline.

Run pipeline

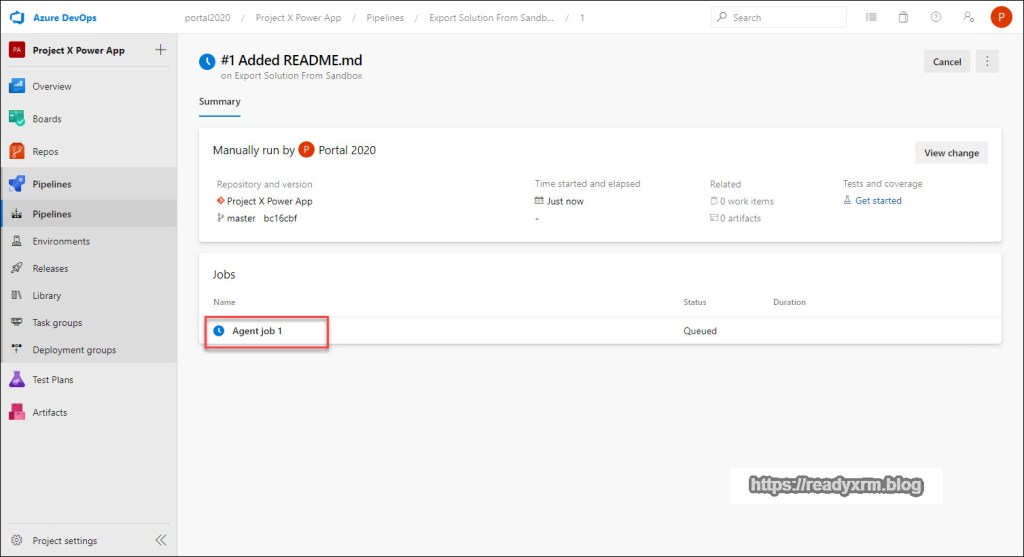

The pipeline will begin to run. Click on the Agent job to see the details.

Agent details

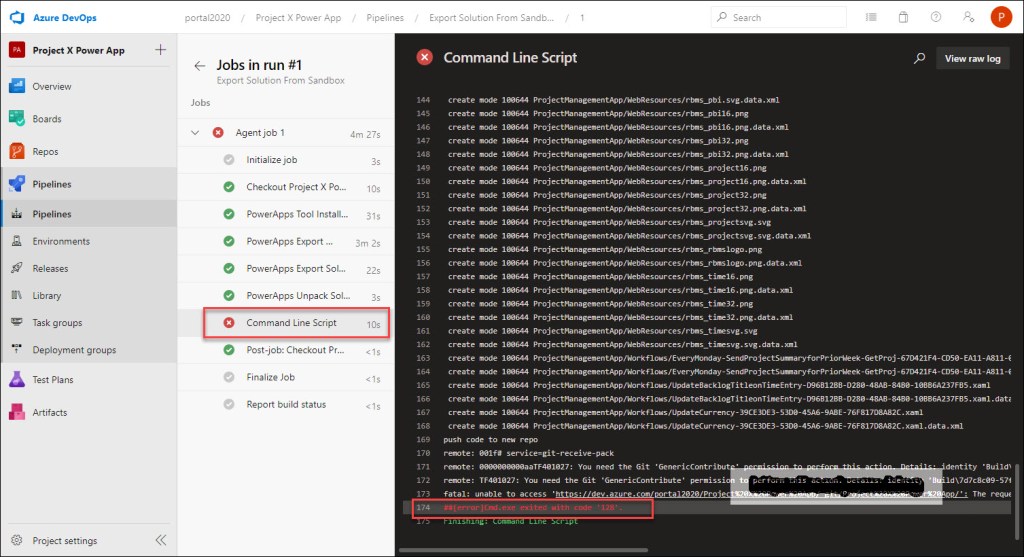

The first time you run this particular job, you most likely will get an error (128). This is because the job creates a new Build Service user when it runs the first time, but we need to step back and give it contribute permissions. Unfortunately, we can set this up prior to running the job (or at least I don’t know how… if you do, please comment below!)

Error 128

To fix:

  1. Click on the Project settings gear icon
  2. Choose Repositories
  3. Choose the new Build Service user (Pipeline name + “Build Service”)
  4. Change Contribute to “Allow”
Add Build Service user

UPDATE: April 24, 2020

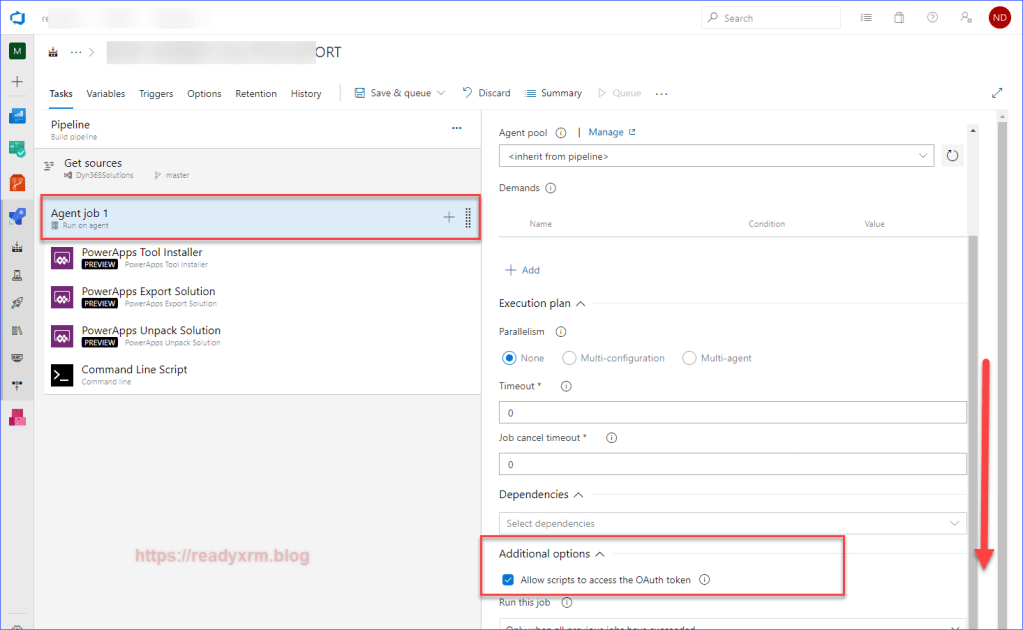

Some folks have commented running into a different issue that will also give a error 128. If may need to configure the Agent Job to allow scripts to access OAuth token. Select the Agent job, scroll down on the properties and check the “Allow scripts to access the OAuth token” and you should be good to go.

Run Export Solution Pipeline (for real this time)

Once the build service user has permissions, run the pipeline again.

Run Pipeline

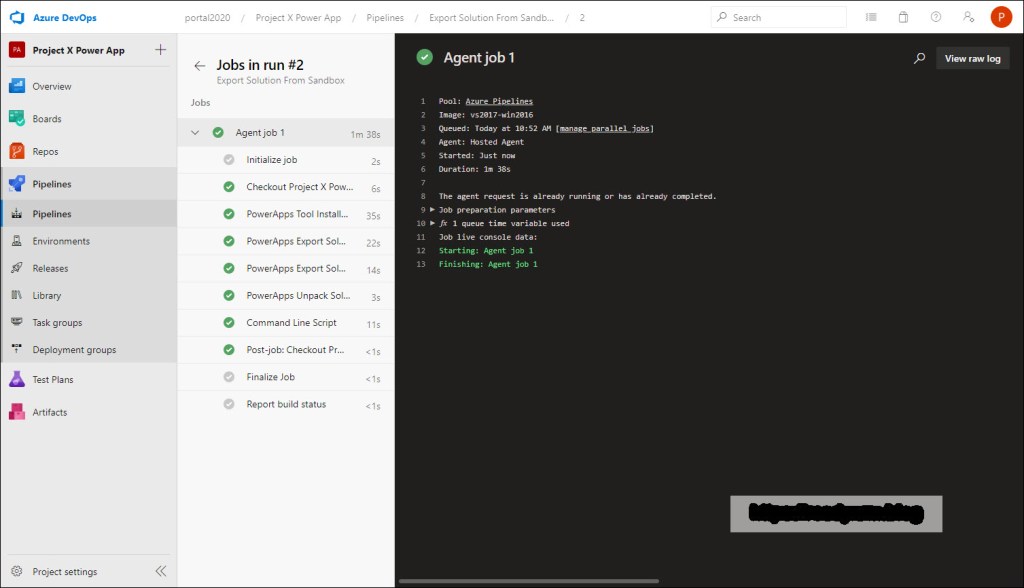

Click on the Agent job to view progress. After a few minutes, the pipeline should be complete and the solution should be in the source repo.

Job Running

Click on the Repos and you should see your unpacked solution files. Each time your run this pipeline, you should be able to see your changes to your configuration in the various files.

Solution files in source control

Updating Production from Sandbox

If you follow the labs on github that inspired this post, you will see that they step through a process of setting a temporary Power Platform build environment to assemble and repack the solution and then deploy to production. As your team expands and you need to consolidate code and solutions, and run automated testing, then that is the approach you should consider.

In the meantime, our “simple” process is getting your solution from your sandbox to your production, without having to save the solution, wait for it to download, copy the solution zip file, then import the solution to your production, and then publish if you are still transporting changes unmanaged (going forward you should be considering managed).

The first step is to create a new pipeline. While we could run all steps in one pipeline, I prefer to break out the saving to source control, as you will likely be doing that on a regular basis (at least daily, if not more) and deploying to production on a less regular basis.

Create Solution Deployment Pipeline

Click on New pipeline

New Pipeline

As before, you the classic editor.

Use Classic Editor

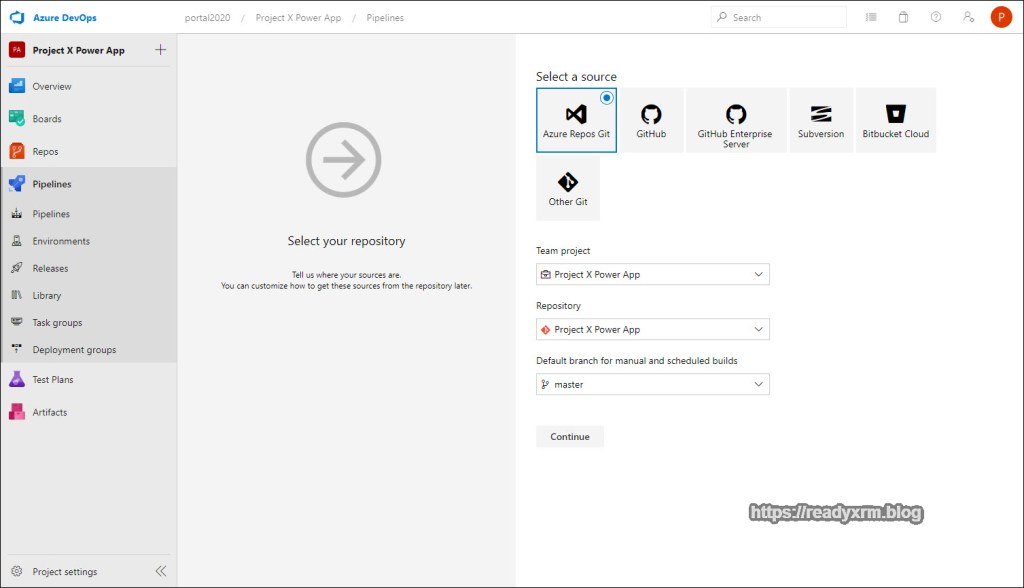

In these steps we won’t be using the repository, so keep all the defaults.

default repository

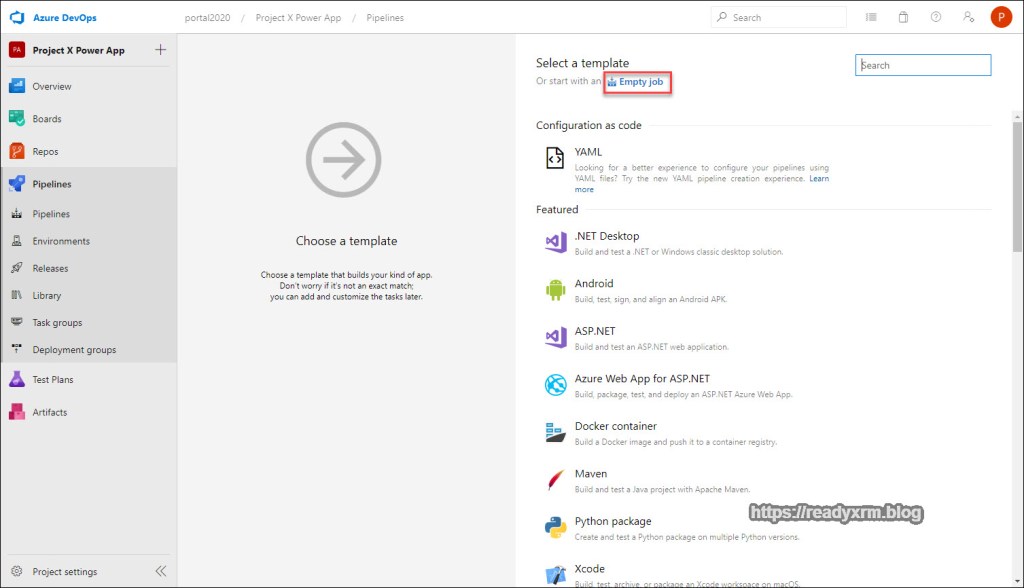

There are no templates, so choose “Empty Job”

Empty Job

Give the pipeline a meaningful name. As you create a series of pipelines, you will want to be able to easily identify them.

Pipeline name

PowerApps Tool Installer

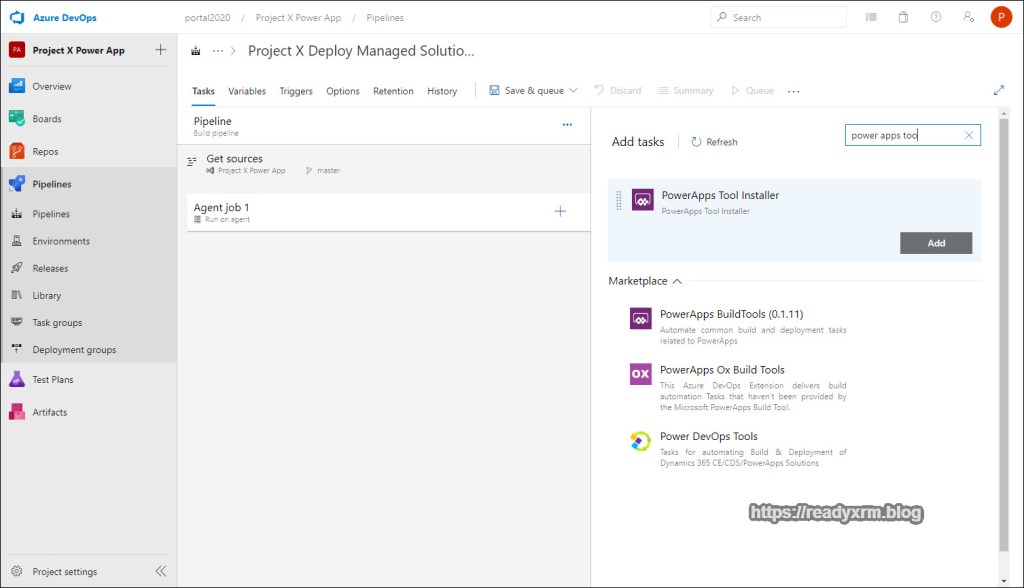

Again, the pipeline will spin up a temporary virtual machine. Add the PowerApps Tool Installer task to install the tools.

Add PowerApps Tools Installer task to pipeline

PowerApps Export Solution

We need to export the solution from our sandbox environment. We could instead repack the solution from our source control, but since we are not currently merging or adding anything to that solution (and its stored in source as unmanaged) we will instead just grab it directly from the sandbox.

Add the PowerApps Export Solution task to the pipeline.

PowerApps Export Solution

As before we will need to configure specific properties of the export solution step.

We already have our source environment service connection configured from our first pipeline, so we can re-use that for our environment URL.

We will again specify our solution name variable, export it as managed to a temporary folder.

Solution Name

$(SolutionName)

Solution Output File

$(Build.ArtifactStagingDirectory)\$(SolutionName)_managed.zip
Export Solution

Now that we have the exported managed solution, we need to import it to our destination (production) environment.

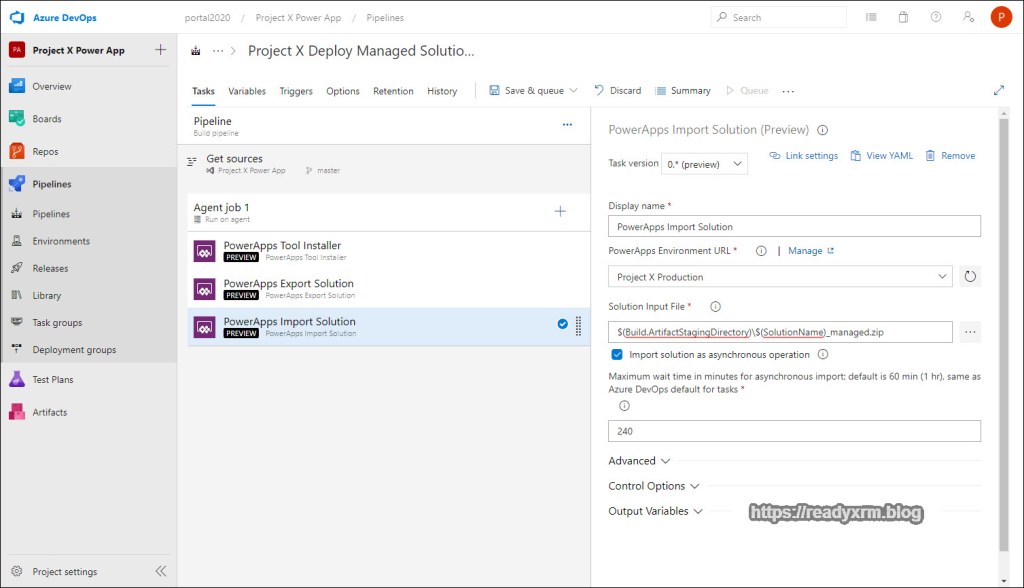

Add the PowerApps Import Solution step to the pipeline. Enter in the following properties;

PowerApps Environment URL – you will need to add a new service connection to your project. See below for a refresher on the steps.

Solution Input File

$(Build.ArtifactStagingDirectory)\$(SolutionName)_managed.zip
PowerApps Import Solution

Production Service Connection

We need to have a service connection for the PowerApps Import Solution step. Click on “Manage” and add a new service connection (the sandbox connection should already be in the list) Choose “generic” service connection type and click Next

Add generic service connection

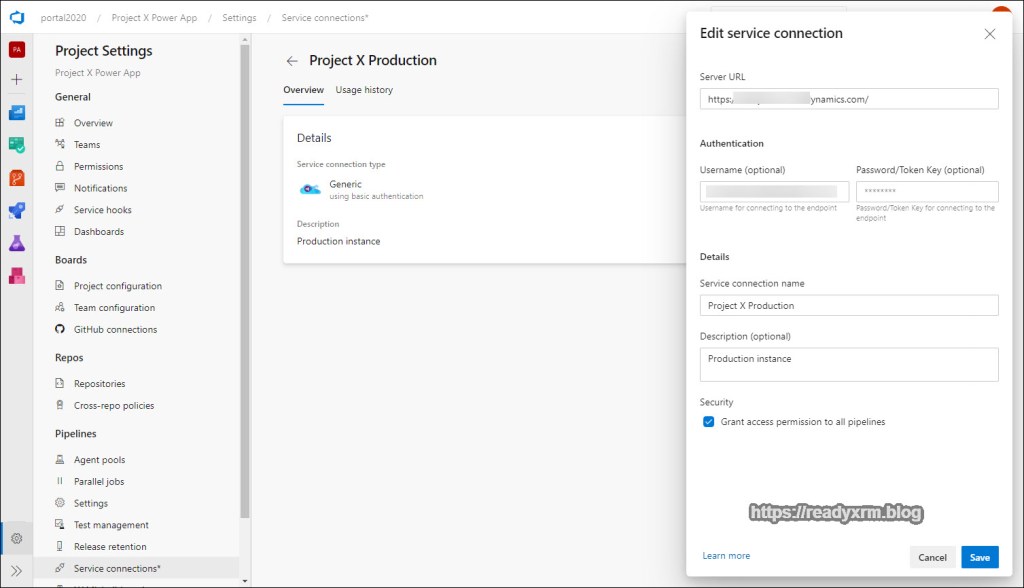

Next, fill in the URL and connection details (again, no support for MFA)

Production environment url and login

Solution name variable

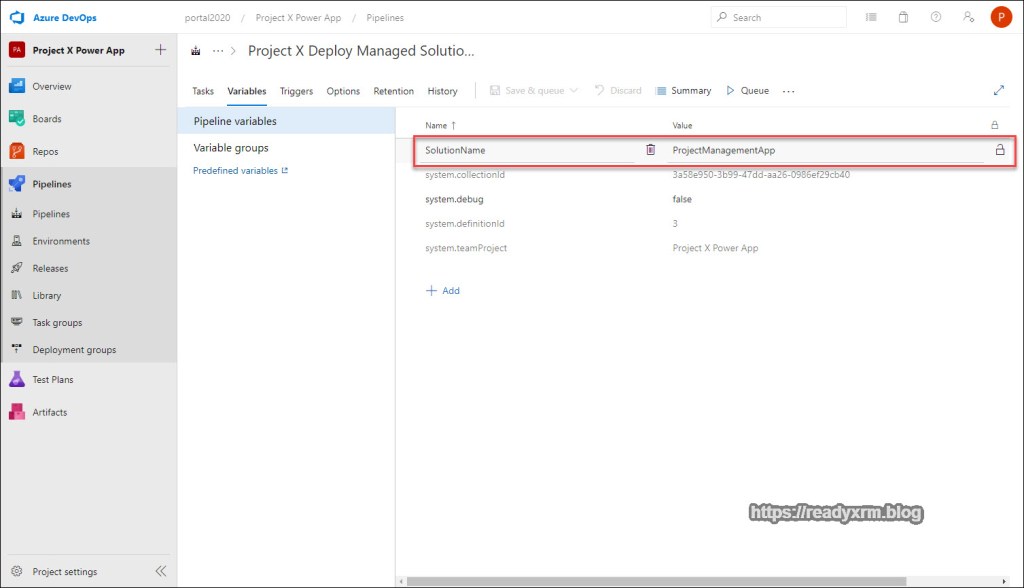

You will need to add the solution name variable that is referenced in the steps above. Click on the variables tab and then add SolutionName variable and the actual name of the solution you want to export and import.

Solutionname variable

Run the Pipeline

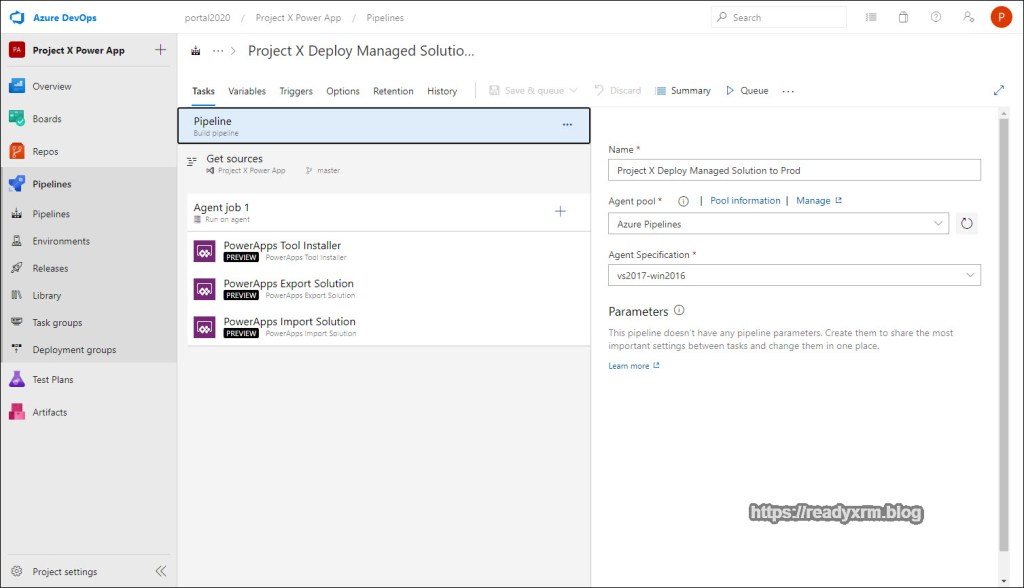

The pipeline should look similar to the following screenshot. Note, if you are still deploying unmanaged solutions to production (and not going to get into that debate here), you can add an additional step to publish your solution after import (not needed for managed).

Deploy Solution Pipeline

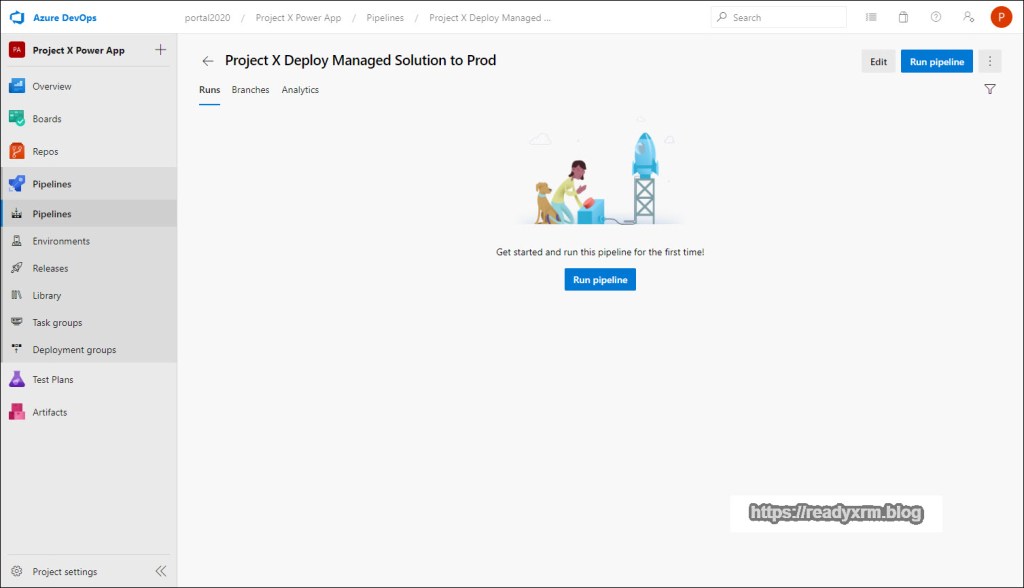

Finally, launch your pipeline.

Run Pipeline

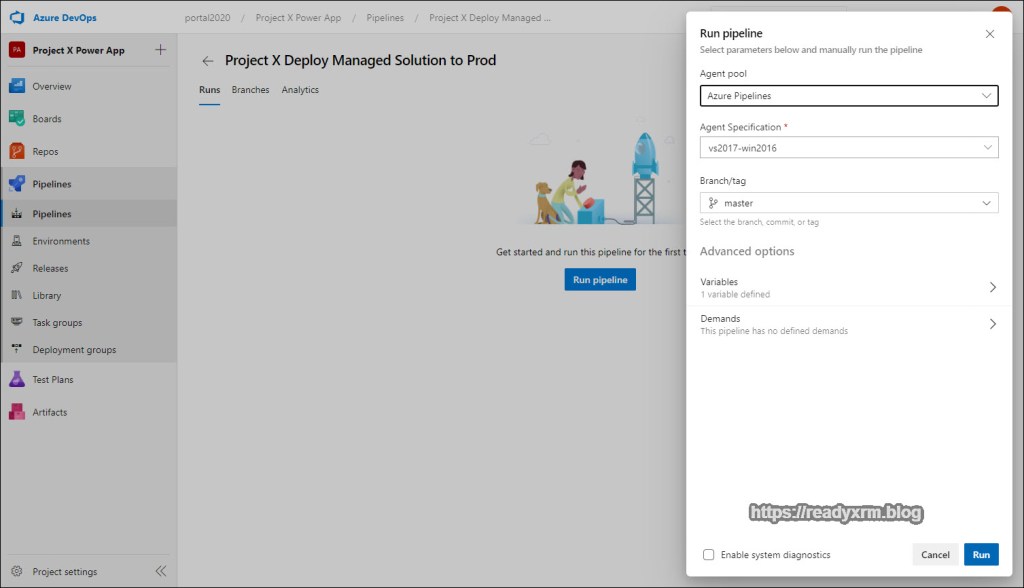

Leave the various defaults and run the pipeline. You can click on the agent so view the steps in progress. If everything runs correctly, your solution should be successfully deployed to production.

Run Pipeline

Now that you have the pipelines set up, you can run these quickly and consistently every time without a lot of tedious importing/exporting.

Now that the basics are setup, you can experiment and add additional tasks/pipelines such as;

  • Pipeline to repack unmanaged solution from source and deploy to a new development environment.
  • Add steps to run the solution checker.
  • Add steps to update the solution version number.
  • Incorporate automated testing
  • Integrate with Power Automate (e.g. deploy solutions from buttons)

Conclusion

Despite the size of your project, there are now tools available (various build tools, PowerShell, etc) to make your life easier as a Power Apps/Dynamics 365 builder, maker, developer, no matter how big or small your project. The time invested to setup even very simple pipelines will save many hours/days/weeks of time in a project.

I am amazed to see and hear folks still manually importing and exporting solutions and NOT saving solution files to source control (even on enterprise projects!) I am hoping this post removes some of the mystery and sets you down a path of good solution deployment habits.

Pipeline Photo by Mike Benna on Unsplash

Project Team Photo by Annie Spratt on Unsplash

Nick Doelman is a Microsoft Business Applications MVP and is always open to learning new things and really likes to learn techniques that removes tedious work like exporting and importing solutions. Follow Nick on twitter @readyxrm

Interesting in learning about Power Apps Portals? Check out my new Power Apps Portals Fundamentals self-paced learning class by clicking here.

21 thoughts on “Simple ALM for Power Apps/Dynamics 365 Projects Revisited – Power Apps Build Tools edition

  1. Absolutely brilliant post Nick, thanks for investing so much time to document this. In my experience, one of the biggest barriers to getting the concept of ‘formal’ ALM off the ground is the sheer weight of the full-blown solution so this puts paid to that argument. I will absolutely be implementing your approach on my next (small) project.

    Like

  2. Appreciate your tutorial ! Thank you Nick

    One thing, for me I had to check “Allow scripts to access the Oauth token” on Agent level to get rid of the (128) error

    Like

  3. Interesting post! I agree that “no project is too small for some good habits”.

    That statement made me wonder whether you have changed your stance on managed solutions: “The solutions are deployed to production, ideally as managed (but could be unmanaged if you haven’t seen the light yet.)”

    Like

    1. Hi Brigitte, thanks for reading my post! Yes, I have changed my position on managed solutions. A lot of my objections/hesitations on using them have been addressed by Microsoft. That story is for another post! Cheers, Nick

      Like

  4. Hi Nick,

    Thanks for the article. I tried to follow your article and add performed all steps for Exporting Solution from Sandbox to Devops (git).

    I faced issue when running pipeline. As mentioned in article I do get 128 error and I performed settings mentioned as well. But I think my 128 error log is slightly different than you mentioned.

    I am sure I am missing something here but could not figure it out.

    Logon failed, use ctrl+c to cancel basic credential prompt.fatal: could not read Username for ‘https://xyz.visualstudio.com’: terminal prompts disabled

    my Git script

    echo commit all changes
    git config user.email “xyz@abc.onmicrosoft.com”
    git config user.name “Automatic Build”
    git checkout develop
    git add –all
    git commit -m “solution init”
    echo push code to new repo
    git -c http.extraheader=”AUTHORIZATION: bearer $(System.AccessToken)” push origin develop

    Like

    1. Hi Ankush, someone else reported that they ended up having to fix the 128 error by checking “Allow scripts to access the Oauth token” on Agent level to get rid of the (128) error. Not sure if that is your issue, but something to check.

      Like

      1. hi Nick, this process will work if a solution is being used but in my case i have a canvas app button triggered flow that isnt supported by solution yet and needs to be created outside a solution and hence i cant use powerapp build task to push it from tenant to tenant, is there a way to push the app including the flows instead of a pushing solution ?

        Like

      2. Since Microsoft is working towards making all Power Platform components solution aware, I don’t know if there currently is something in the Power Apps build tasks to move non-solution components (except manually). I have a few projects where I also need to do this. If I find out something, I will post back here. Cheers, Nick

        Like

  5. Hi Nick,

    Thanks. Yes “Allow scripts to access the Oauth token” on Agent level to get rid of the (128) error was the solution for me.

    It was not clear enough for me where to look for the “Allow scripts to access the Oauth token” option.

    In your blog it is under “Agent job Run 1”– > Advanced options– > “Allow scripts to access the Oauth token”

    Thanks again. Not sure if you should add this to your blog 🙂

    Like

  6. Hi Nick, very useful post. How would you organise multiple solutions in DevOps on a long term implementation? as a single project with multiple build/release pipelines or as different projects . I work in house and we do lots of small changes on a regular basis and then larger “projects” to implement new functionality in different business areas.

    Like

    1. Hi Matthew, I generally have different solutions for specific projects or areas, and one repository per client. Using my “powershell” method (in the previous linked blog) I specify the solution in the command line, so same process, same repository, but different solution gets processed. The Azure DevOps pipelines has the solution name set as variable (so I can change for different projects), but I am looking at better ways to parameter-ize that so I can use the same pipeline for different projects. I started playing around with Power Automate (flow) to easily kick off different projects/solutions but likely will end up building a simple canvas app “pipeline admin” tool where I can easily choose a particular environment and solution and kick off the process. This might be a blog post in the future. I am still learning and sharing what I figure out along the way. Cheers, Nick

      Like

  7. Hi Nick,
    nice read! Very useful.

    We are using JIRA on-premise for task management. and BitBucket as Source Control.
    Do you see any way on how we can implement an ALM like this with JIRA on-premise?

    Unfortunately I have absolutely no admin expertise in either of these applications, but I am pretty sure we would be able to have some action triggered upon merge of a branch.
    I guess JIRA and Bitbucket run on a Linux server we could then execute a PowerShell script on.

    So I guess that should in theory work… did I forget anything?

    Also, what about Patches? We are right now using patches to deploy, because it basically lets us deploy within business hours (as patches only take like ~1 minute and only effect the included entities).
    Are Patches also possible using PowerShell scripts?

    Like

    1. Hi Serf

      I have no experience with JIRA or bitbucket, but if you can interact using PowerShell then this should be doable. I believe bitbucket might be on the list of source control systems that Azure Dev Ops can interact with.
      This should work with Patches, all I am doing in these pipelines is replicating all the “clicks and file copies” that are tedious when doing this manually. Its much easier to kick off a pipeline and let the computer do your work. Sorry I can’t be of more help. Cheers, Nick

      Like

Leave a Reply

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out /  Change )

Google photo

You are commenting using your Google account. Log Out /  Change )

Twitter picture

You are commenting using your Twitter account. Log Out /  Change )

Facebook photo

You are commenting using your Facebook account. Log Out /  Change )

Connecting to %s
